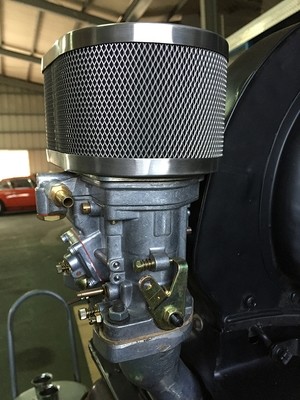

Classic Style Oval Mesh Air Cleaner Set for IDF and Dellorto Carburator

100% HAND CRAFT piece by piece

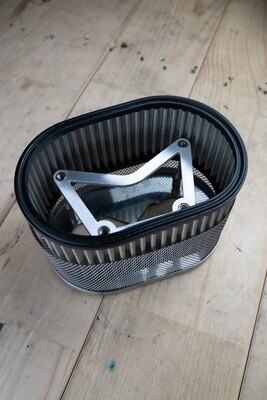

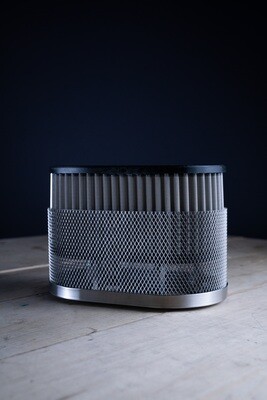

We have spent many hours of works and come up with this so detailed of Classic Oval Mesh Air Cleaner, with all the possibility for vintage or performance engine air filter touch up set. This oval mesh air cleaner set add the final touch of your classic engine.

Features:

1. Fits on Weber IDF and Dellorto 40 / 44 /48 carburetors. Dellorto DRLA will need to use 4mm spacer(s) to clear the fuel inlet banjo on carburetor.

http://shop.vintagespeed.com.tw/s.nl/it.A/id.807/.f

1. Made by #304 Stainless Steel.
2. The “ 5 Bolts “ Locking on Top Plate, retain classic style. Maximum tighten to 5 N.M. on all bolts.
3. Build-In Rivet, to the best details ever.
4. Air Element INCLUDED.
5. Can also be fitted with other different air filter.
   • To swap to K&N filters, please use K&N parts number K&N-E3341, web link below:

https://www.knfilters.com/e-3341-oval-air-filter

• For EMPI filter, please use EMPI OVAL 3 ½” filter.

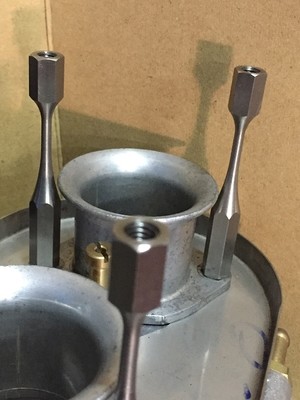

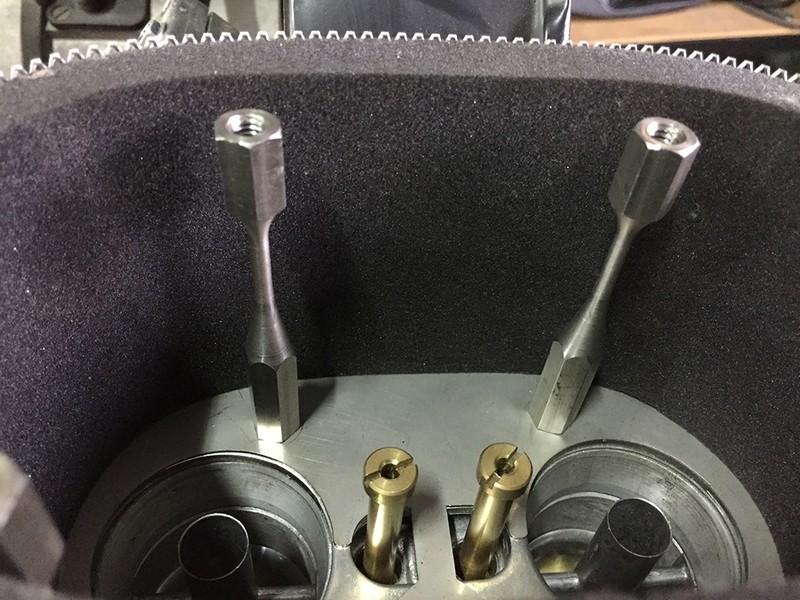

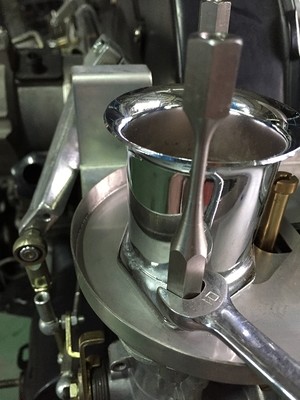

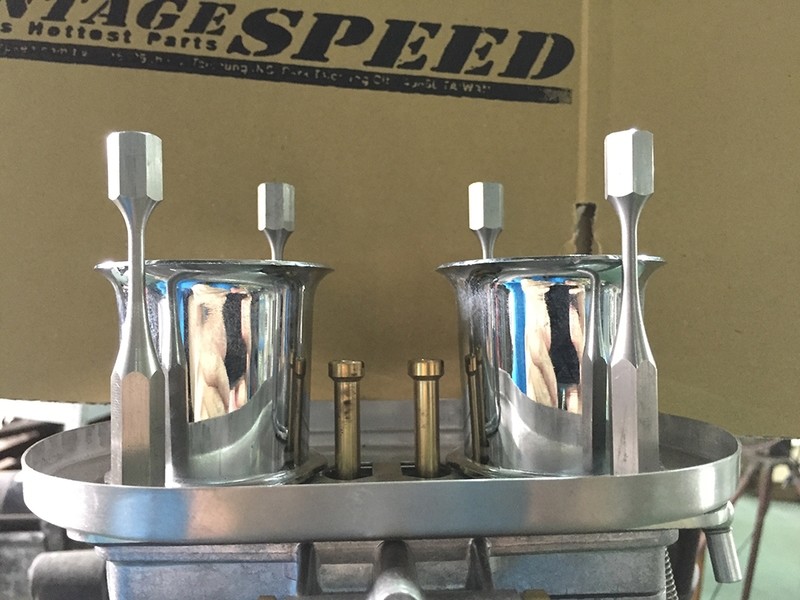

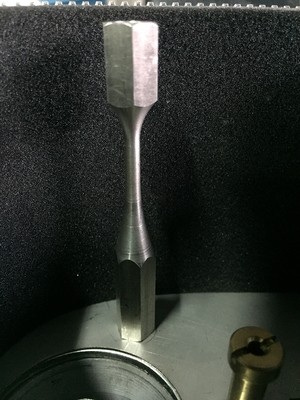

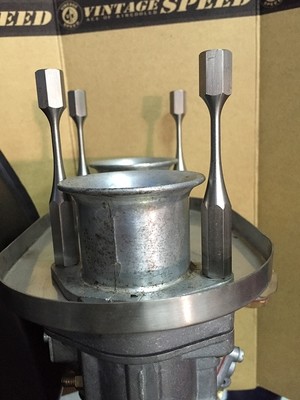

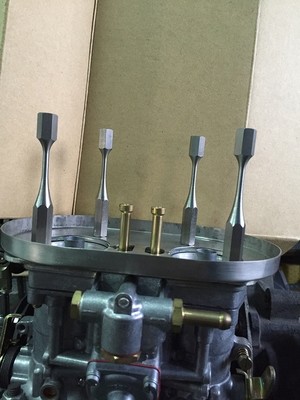

1. The inner 4 tubes are threaded, and link for upper and lower stainless steel plates. The direction of the tubes are shorter Hex screw on top and longer at bottom.

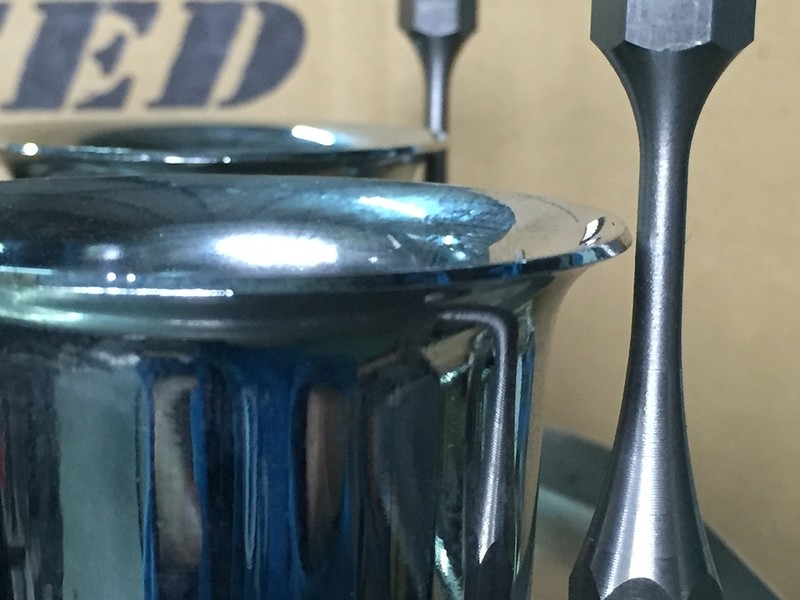

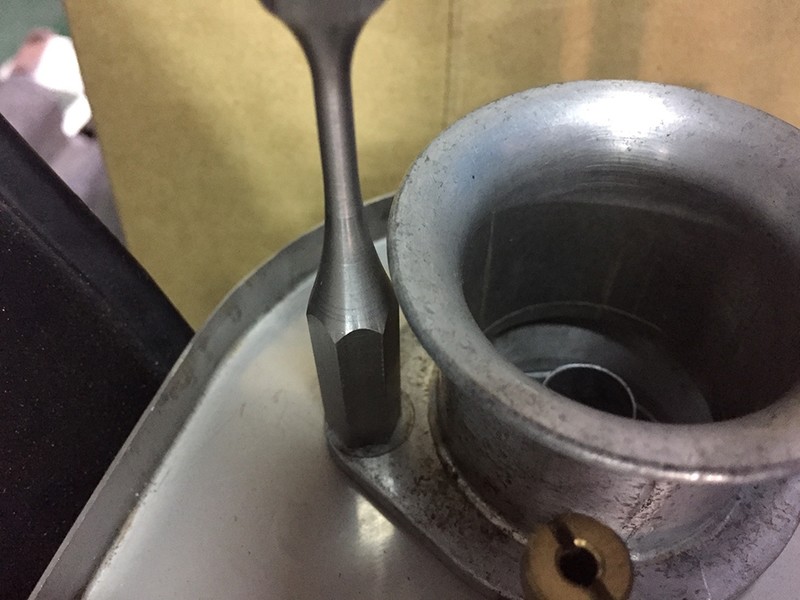

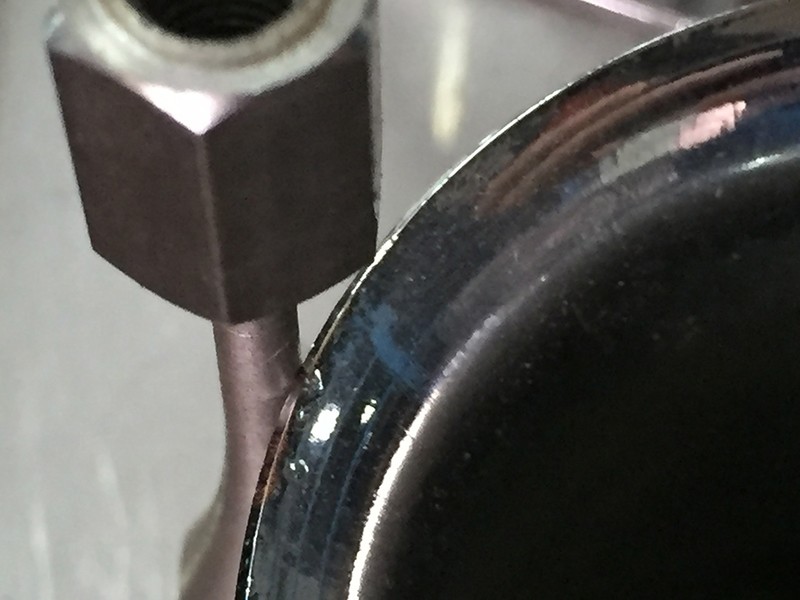

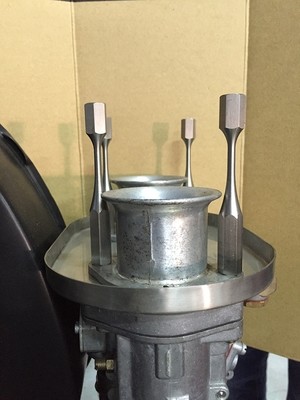

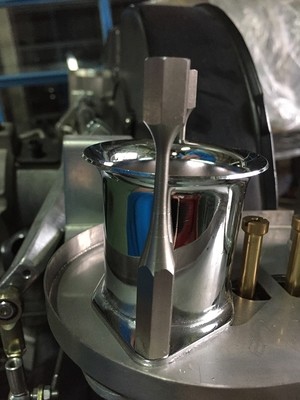

2. There is very little gap(s) between the inner tubes and the stacks, adjust is if necessary. If there is no gaps, then grind little off on the stacks.
3. Top plate opened 20mm hole for custom own fitting. http://shop.vintagespeed.com.tw/s.nl/it.A/id.808/.f
4. Options for Surface Finishing on Top and Base plate:
   1. Brushed
   2. Polished
   3. Powder Coated in Silver
   4. Powder Coated in Black
5. Ventilation system also available to suit different applications.
6. Filter Size measurement: L 18cm, W 11.8cm, H 8.6cm
