OIL FILLER TWIN AIR VENT FOR VW TYPE 1 ENGINE 40HP~1600CC
SKU INOX-356-200
$240.48
In stock
1
Product Details
The Oil Filler ONLY WORKS with VW Factory Alternator Stand.
For aftermarket alternator stand, such as MST, please email us before ordering.
Complete Bolt On Kit for VW Beetle, VW Bus, VW Karmann Ghia and Type 3s.

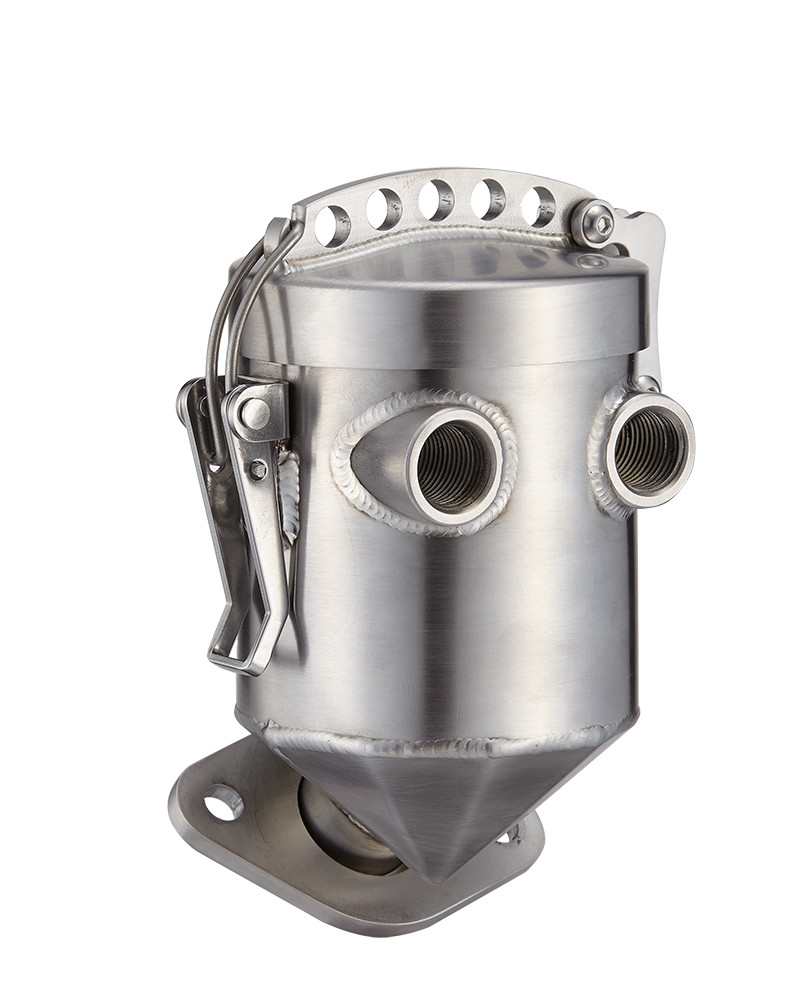

VW Oil Filler Twin Air Vent for VW Type 1 Engine 40HP~1600cc and Up. The INOX 356 OIL FILLER, for VW Type 1 engine in Porsche 356 Style Oil Filler, the compact design to give a VW type 1 engine an extra breathing and also easy for oil filling. The Filler Neck is sited on the CNC 6061 Aluminum Flange secured by Hex key on the alternator stand.
With internal chamber design to separate the oil and air, which allow air to travel return to both side of carburetors.
The Hex Key bolt is using standard factory thread M32 x P1.5 into alternator stand for all VW Type 1 Engine.
- The INOX 356, Porsche 356 Style Oil Filler is made by 100% Stainless Steel.
- with 0.4L volume gives compact extra Air Breather room for the engine upto 95 BHP.
- CNC Stainless Steel Hex key to replace the factory oil filler nut.
- CNC 6061 aluminum flange.
- Road vent pipe at inner diameter 17mm (O.D. at 19mm).
- For 40HP ~ 1600cc and Up 3 pieces VW Type 1 Engine.
- Twin Air Vent : Build-in 2 x M16 x 1.5mm Breather Hose connection port.
* The import tax may be applied depending on each case *
