The Oil Filler ONLY WORKS with MST Alternator Stand.

Complete Bolt On Kit for VW Beetle, VW Bus, VW Karmann Ghia and Type 3s.

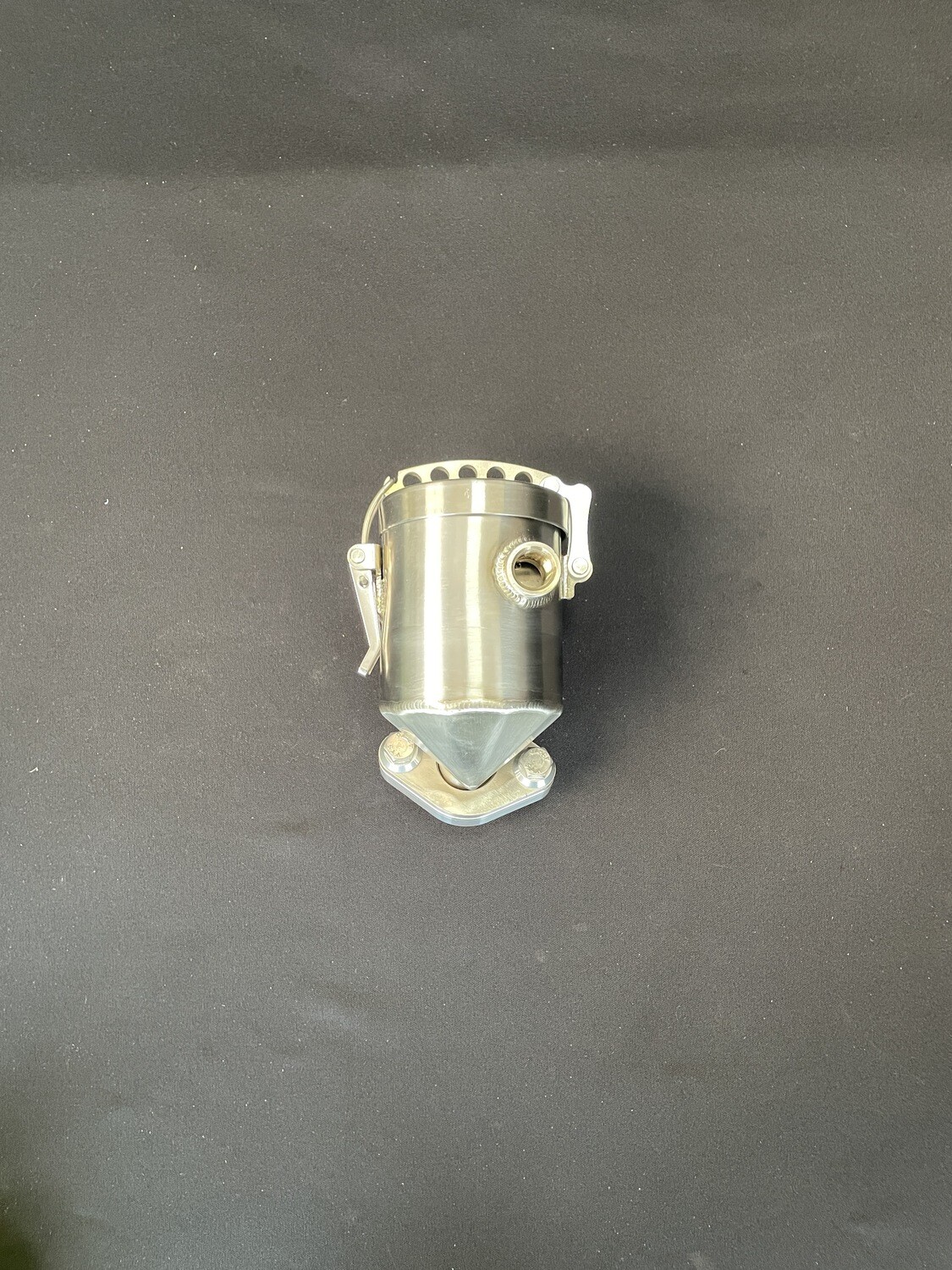

VW Oil Filler One Air Vent for VW Type 1 Engine 40HP~1600cc and Up. The INOX 356 OIL FILLER, for VW Type 1 engine in Porsche 356 Style Oil Filler, the compact design to give a VW type 1 engine an extra breathing and also easy for oil filling. The Filler Neck is sited on the CNC 6061 Aluminum Flange secured by Hex key on the alternator stand.

There is no road vent for this set up, it is very important to have an air vent connected to breather system or to carburetor air filter.

With internal chamber design to separate the oil and air, which allow air to travel freely either exit to atmosphere or return to one side of carburetor.

The Hex Key bolt is using standard factory thread M32 x P1.5 into alternator stand for all VW Type 1 Engine.

• The INOX 356, Porsche 356 Style Oil Filler is made by 100% Stainless Steel.
• with 0.4L volume gives compact extra Air Breather room for the engine upto 95 BHP.
• CNC Stainless Steel Hex key to replace the factory oil filler nut.
• CNC 6061 aluminum flange.
• For 40HP ~ 1600cc and Up 3 pieces VW Type 1 Engine.
• One Air Vent : Build-in 1 x M16 x 1.5mm Breather Hose connection port.

* The import tax may be applied depending on each case *

Special Note: This Oil Filler WILL NOT work with Cross Bar Linkage, the clearance between the fan housing and oil filler is 38mm only.
